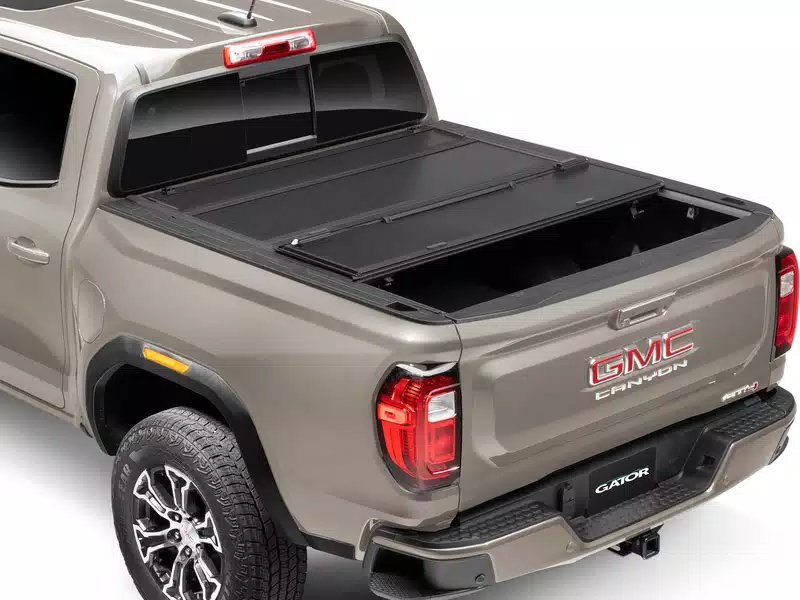

Gator EFX Hard Fold Tonneau Cover
The Gator EFX hard fold tonneau cover transforms your truck bed into lockable, weather-sealed storage without sacrificing quick cargo access. Our tri-fold design uses three reinforced aluminum panels coated in a textured matte black finish that resists scratches, UV fade, and daily wear. Each panel folds independently, giving you partial bed access when you need it or full clearance when hauling taller loads.
We engineered the EFX for universal truck compatibility—heavy-duty rail clamps fit most full-size and mid-size pickups without drilling into your bed rails. Dual-action latches lock from inside the bed, and integrated tamper seals give you visible confirmation when the cover’s secure. Drivers who need weekend versatility and weekday security trust the EFX to do both.
Built for durability & quick access
Aluminum Panel Construction & Finish
Each EFX panel starts as marine-grade aluminum alloy—lightweight enough for one-person operation but rigid enough to support distributed cargo weight. We apply a textured powder coat in two heat-cure stages, so the finish bonds molecularly to the metal rather than sitting as a surface layer. That process makes the cover resistant to rock chips, branch scratches, and the kind of surface wear you’d see on painted steel alternatives.
The matte black texture hides fingerprints and minor scuffs, and the non-reflective surface won’t glare under jobsite lighting or desert sun. Panel edges are hemmed and sealed before coating, eliminating sharp edges and preventing moisture infiltration at the seams. We’ve tested EFX panels through 500 hours of salt-spray exposure and 1,000 UV cycles—finish degradation stays below 2% gloss-loss across that span.
Tri-Fold Operation & Bed Access
Partial & Full Access Modes
The EFX unfolds in two stages: release the tailgate latches and fold the rear panel forward for quick access to the last third of your bed, or continue folding the middle and front panels to expose the entire cargo area. Panel hinges use stainless-steel pins with nylon bushings—smooth enough for one-handed operation, stiff enough that panels hold position on uneven terrain.
When you need maximum clearance, all three panels lift off the rail system in under a minute. We use quarter-turn knobs instead of threaded bolts, so removal requires no tools and reinstallation snaps back into the same clamp positions. Drivers who alternate between lumber runs and daily commutes swap between locked-down security and open-bed hauling without calling a second person or keeping a toolbox handy.
No-Drill Clamp System & Truck Compatibility
Our rail clamps grip the inner bed-rail channel using spring-loaded jaws and adjustable set screws—zero drilling, welding, or permanent modification to your truck. The clamp bodies are cast aluminum with rubber contact pads, so they won’t scratch factory bed liners or leave compression marks on composite rails. Once torqued to spec, the system holds firm through highway speeds, off-road vibration, and repeated open-close cycles.
The EFX fits most full-size pickups from 2005 forward—Ford F-150, Chevy Silverado 1500, RAM 1500, GMC Sierra, Toyota Tundra, and Nissan Titan—plus mid-size models like the Tacoma, Colorado, and Ranger. We include bed-length spacers for 5.5-foot, 6.5-foot, and 8-foot boxes; consult the fit guide in your shipment to confirm rail spacing before final clamp tightening. Crew-cab and extended-cab configurations install identically as long as bed length matches.
More Tri-Fold & Hard Folding Bed Covers
Rated 4.8 by verified buyers
Common Questions About the EFX Hard Fold
No drilling required. The EFX uses heavy-duty rail clamps that grip your truck’s inner bed-rail channel with adjustable set screws and spring-loaded jaws. Rubber contact pads protect factory bed liners and painted rails. You’ll torque the clamps to spec using the included hex wrench, but no permanent holes or modifications are made to your truck.
The EFX fits most full-size pickups from 2005 forward, including Ford F-150, Chevy Silverado 1500, RAM 1500, GMC Sierra, Toyota Tundra, and Nissan Titan. Mid-size trucks like the Tacoma, Colorado, and Ranger are also compatible. We include spacers for 5.5-foot, 6.5-foot, and 8-foot bed lengths. Consult the fit guide included in your shipment to confirm rail spacing for your specific cab and bed configuration.
You can operate the EFX in stages. Release the tailgate latches and fold the rear panel forward for quick access to the last third of your bed, or continue folding the middle and front panels to expose the entire cargo area. Each panel uses independent hinges, so partial access is simple and one-handed. For maximum bed clearance, all three panels lift off the rail system in under a minute using quarter-turn knobs—no tools required.
The EFX is rated for 400 lbs evenly distributed across the closed panels. That capacity handles camping gear, coolers, roof-top-tent bags, and similar loads without flexing the aluminum. Avoid concentrating weight on a single panel or hinge point, and always distribute heavy items across at least two panels to maintain structural integrity and prevent hinge stress.
The EFX uses continuous EPDM rubber seals at every panel joint and along the perimeter rail to keep water out. In third-party testing, the cover passed a 15-minute spray at 30 PSI with minimal intrusion—equivalent to a heavy rainstorm with crosswinds. Corner drain channels route runoff toward the tailgate. While no tonneau cover is 100% submersion-proof, the EFX keeps cargo dry under normal driving and weather conditions, including highway rain and car washes.
Gator backs the EFX with a limited lifetime warranty on the aluminum frame and mounting hardware, plus a 3-year warranty on the powder-coated finish. The warranty covers manufacturing defects, material failure, and finish degradation under normal use. It does not cover damage from accidents, improper installation, or modifications. Registering your cover within 30 days of purchase activates full warranty benefits and priority support.
No. The rear panel latches engage striker plates mounted to your closed tailgate, so the cover cannot lock unless the tailgate is latched. However, the front and middle panels use slam latches that auto-engage into the rail channels when you close the tailgate, providing a two-point lock at the rear and passive retention at the front. For maximum security, always close and lock your tailgate before leaving the vehicle unattended.
