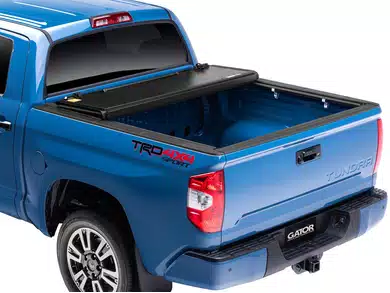

Gator EFX Hard Folding Tonneau Cover
The Gator EFX hard folding tonneau cover brings industrial-grade aluminum panel construction to your truck bed. Engineered as a tri-fold design, the EFX opens from either side and sits flush against the bed rails for a low-profile seal that keeps rain, dust, and road debris out of your cargo area.
We built the EFX for drivers who need secure bed coverage without sacrificing rear-window visibility or payload access. The folding mechanism stores the cover upright against the cab when fully open, giving you unrestricted bed use when hauling tall loads or accessing tie-down points. When closed, the dual-latch system locks at the tailgate and automatically secures the front panel to the cab rail, creating a weather-tight barrier across all three sections.
Unlike soft roll-up designs, the EFX’s powder-coated aluminum panels resist UV fade and won’t sag or tear over time. Each panel includes internal stiffening ribs that prevent flex under highway wind loads while maintaining a lightweight profile for one-person installation. The perimeter seal uses commercial-grade EPDM rubber that compresses evenly across the bed rail, blocking water intrusion even during heavy rain or high-pressure car washes.
EFX Construction & Protection Specs
Aluminum Panel Design & Weather Sealing
Each EFX panel starts as .080-inch marine-grade aluminum sheeting, then receives a textured powder coat that resists UV degradation and surface scratching. The tri-fold hinge system uses stainless steel pins and nylon bushings rated for 50,000 open-close cycles, ensuring smooth operation even after years of daily use.
The EPDM rubber seal runs continuously around all three panels and compresses against the bed rail when the cover is latched. This creates a physical barrier that blocks rain from reaching cargo, even during sustained highway speeds or standing water conditions. Internal drainage channels route any moisture that does accumulate toward the tailgate, preventing pooling on top of the panels.
Installation & Bed Rail Compatibility
The EFX mounts using adjustable C-clamps that grip the inner bed rail without requiring drilling or permanent modification. Each clamp includes a rubber pad that protects the bed rail finish and distributes clamping force evenly across the rail surface. Total installation time averages 30 minutes with basic hand tools.
Before installation, measure your bed length from the inside of the bulkhead to the inside edge of the tailgate. The EFX is available in short-bed (5.5–6 ft), standard-bed (6.5–6.75 ft), and long-bed (8 ft) configurations. Each size ships with pre-drilled clamp mounting points spaced to match the most common bed rail profiles, including those found on Ford, Chevrolet, Ram, Toyota, and Nissan full-size trucks.
Latch Mechanism & Security Features
The EFX uses a two-point latch system: the rear panel locks to the tailgate via rotary latches on both sides, and the front panel auto-latches to a striker mounted on the cab rail. When you close the rear panel first, pressing down on the center engages both rotary latches simultaneously. The front panel then drops into place and hooks onto the striker without requiring manual actuation.
Both rotary latches accept standard padlocks or cable locks for added theft deterrence. The latch housing is recessed into the panel edge, preventing prying tools from gaining leverage against the mechanism. While the EFX is not marketed as a security vault, the metal construction and dual-latch design provide significantly more resistance to forced entry than soft covers or open truck beds.
More Tri-Fold & Hard Tonneau Options
Rated 4.8 by verified buyers
Common Questions About the EFX Hard Folding Cover
No, the EFX installs using adjustable C-clamps that grip the inner bed rail without drilling. Each clamp includes a protective rubber pad to prevent scratching the bed rail finish. You’ll need a socket wrench or adjustable wrench to tighten the clamp bolts, but no permanent modifications are made to your truck.
Yes, but you’ll need to unlatch the cover’s rear panel first. The rear panel overhangs the tailgate by about one inch to maintain a weather seal. Once you release both rotary latches, you can lower the tailgate normally. The cover remains attached to the bed rails during tailgate operation.
Measure the inside of your truck bed from the bulkhead (the wall behind the cab) to the inside edge of the tailgate. Short-bed models fit 5.5 to 6 ft beds, standard beds accommodate 6.5 to 6.75 ft, and long-bed versions cover 8 ft beds. If your measurement falls between sizes, select the next size up and use the adjustable clamps to fine-tune the fit.
The EFX is compatible with most drop-in and spray-in bed liners. The clamps adjust to accommodate bed rail thicknesses from 0.5 to 1.25 inches, which includes the added material from most aftermarket liners. If you have an over-rail bed liner that extends above the bed rail edge, you may need to trim the liner or use spacer blocks to achieve proper clamp engagement.
Both rotary latches on the rear panel include slots for standard padlocks or cable locks. Adding locks prevents someone from opening the rear panel, which in turn prevents access to the front two panels. While this adds a layer of theft deterrence, the EFX is designed primarily for weather protection rather than high-security cargo storage.
The EFX supports up to 400 lbs of evenly distributed weight when all three panels are latched. Concentrated point loads should not exceed 100 lbs on any single panel. This capacity is sufficient for lighter rooftop cargo like camping gear or kayak mounts, but the cover is not rated for standing or walking on.
We back the EFX with a three-year limited warranty covering defects in materials and workmanship. This includes the aluminum panels, hinge assemblies, latches, and clamp hardware. Normal wear items like the EPDM seal are covered for the first 12 months. The powder coat finish is warranted against peeling or delamination for three years under normal use.
