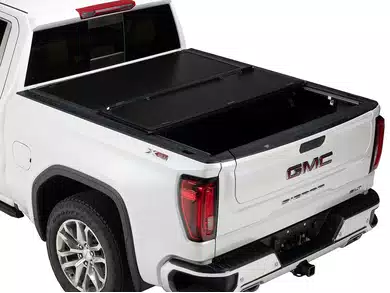

Gator EFX Tonneau Cover | Hard Folding Truck Bed Protection
Our EFX hard folding tonneau cover combines low-profile style with serious truck bed security. Three reinforced aluminum panels fold completely open for oversized cargo access, then lock down flush with your bed rails when closed. The matte black powder-coat finish resists UV fade and road grime, while dual-action clamps grip your bed rails without drilling.
We designed the EFX for drivers who need genuine hard-panel protection without sacrificing bed access. One-handed operation means you can fold the cover back while holding a toolbox, and the integrated drain channels keep water out of your cargo area during heavy rain.
Core specs & construction
Panel Construction & Finish
Each EFX panel uses aircraft-grade aluminum alloy formed into a double-ribbed structure. We run every panel through a multi-stage powder-coat process that bonds matte black finish directly to the metal, creating a surface that resists chips from gravel and won’t chalk or fade under constant sun exposure.
The hinge assembly connecting the three panels uses stainless steel pins and sealed bearings. This lets each panel swing independently without metal-on-metal grinding, and the sealed bearing design keeps road salt and mud out of the pivot points. Panel edges overlap by a full inch when closed, and the interlocking design maintains alignment even when the cover takes impacts from cargo shifting during off-road driving.
Installation & Mounting System
The EFX clamps directly to your factory bed rails using our dual-action grip system. Each clamp has an upper jaw that hooks the rail lip and a lower compression pad that spreads clamping force across a 3-inch contact zone. Turn the tension knob until the rubber pad compresses slightly, and the cover sits locked in place with zero play.
We include adjustable spacers for trucks with spray-in bedliners or drop-in liners. The clamp assembly slides along the rail before you tighten it, so you can position the cover to clear toolboxes mounted near the cab or adjust for aftermarket tailgates. The entire installation takes about 20 minutes with a socket wrench and requires no permanent modifications to your truck bed.
Weather Sealing & Drainage
Seal Design
Our weather seal runs continuously along every panel edge and around the perimeter where the cover meets your bed rails. The EPDM rubber compound stays flexible through temperature swings from sub-zero winter mornings to summer heat, maintaining contact pressure against the aluminum even as the panels expand and contract.
Water Management
Integrated drain channels molded into the underside of each panel catch water that seeps past the primary seal and route it to exit points near the front corners of the bed. This dual-barrier system keeps rain and snow melt away from cargo during highway driving and ensures the bed stays dry when the truck sits parked in storms. The same channel design prevents pooling on top of the cover, so you won’t dump gallons of standing water into your bed when you open the panels.
More Gator Hard Folding Bed Covers
Rated 4.8 by verified buyers
Common Questions About the EFX
Yes. We include adjustable spacer blocks that compensate for spray-in liners up to half an inch thick. The rail clamps have enough adjustment range to accommodate both spray-in and drop-in bedliner styles without interfering with the seal or clamp grip. You may need to adjust the clamp position slightly during installation to ensure the cover sits level.
Absolutely. You can open just the rear panel for quick access near the tailgate, or fold back the rear and middle panels to reach cargo mid-bed while keeping the front panel closed. Each panel operates independently and the gas struts hold each one in the upright position until you’re ready to close it.
The cover is rated for 500 pounds of evenly distributed weight. That means you can stack gear on top or load a roof-mounted cargo basket that extends over the bed, as long as the weight spreads across all three panels. Concentrated point loads like standing on a single panel are not recommended and can damage the aluminum.
It depends on your hitch design. The EFX folds completely back toward the cab, so most gooseneck and fifth-wheel hitches will clear the folded panels. However, some bulky fifth-wheel setups may interfere with the front panel. Measure the clearance between your hitch and the front bed rail before ordering, or contact us with your truck model and hitch type for a compatibility check.
The standard EFX uses our core aluminum panel construction with powder-coat finish and standard latches. The EFX Pro adds integrated LED bed lighting controlled by a cab switch, a carpeted underside to protect cargo, and upgraded rotary latches with tool-free adjustment. Both models share the same panel structure and weatherproofing system.
No. When fully closed, the EFX sits flush with your bed rails and doesn’t extend into the bed space where a front-mounted toolbox would go. When opened, the front panel folds back and may rest against a toolbox depending on its height, but this won’t damage the cover or prevent it from operating. Adjust the clamp positions during install to leave clearance if needed.
Wash the panels with car wash soap and water every few weeks to remove road salt and debris. Avoid automatic car washes with spinning brushes that can scratch the powder-coat. Lubricate the hinge pins and latch mechanisms with silicone spray twice a year. Inspect the weather seals for cracks or compression damage annually and replace them if they lose elasticity. Avoid using harsh solvents or abrasive cleaners on the aluminum surface.
