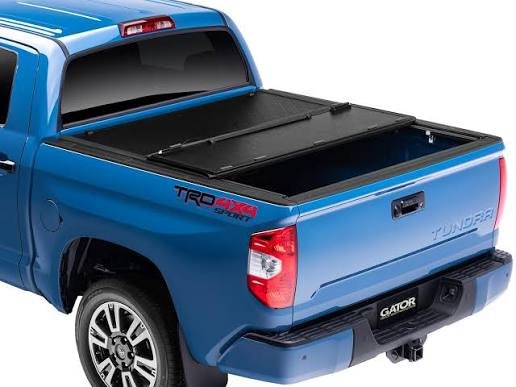

Gator Folding Tonneau Cover | Hard Folding Bed Protection
Our Gator folding tonneau cover is a hard tri-fold bed cover engineered for drivers who demand both security and convenience. The three-panel aluminum construction folds forward in seconds, giving you instant access to the full truck bed without removing a single component. Double-walled panels deliver superior strength while keeping the profile sleek and aerodynamic.
Weather seals run the entire perimeter, keeping rain, snow, and road spray out of your cargo area. Integrated clamps grip your bed rails without drilling, so installation takes less than 20 minutes with basic hand tools. Whether you're hauling gear for work or locking down valuables overnight, this cover balances everyday usability with the rugged protection serious truck owners expect.
Construction & installation highlights
Materials & panel construction
Each panel is formed from marine-grade aluminum alloy, the same corrosion-resistant material used in coastal trailer frames and industrial racking. We reinforce every hinge point with stainless steel hardware, so repeated folding cycles won’t loosen or warp the connection over time.
The dual-wall design sandwiches an insulating air gap between inner and outer skins, which dampens road noise and reduces heat transfer on sunny days. Powder-coating is applied in two stages — primer followed by a matte black topcoat — creating a finish that holds up to car washes, bug splatter, and years of UV exposure without flaking or yellowing.
Installation & bed rail compatibility
The no-drill clamp system slides onto factory bed rails and tightens with a hex key, eliminating the need for permanent holes or adhesive strips. Adjustable clamp blocks accommodate rail widths from 1.5 to 2.2 inches, covering the majority of domestic and imported pickup models produced since 2005.
Front-panel alignment tabs guide the cover into position before you lock down the clamps, so the seals sit flush against the bulkhead on the first try. If you ever need to remove the cover completely — for hauling tall cargo or swapping to a different truck — the entire assembly lifts off in one piece once the clamps are loosened, and reinstallation takes the same 15 minutes as the original setup.
Weather sealing & water resistance
EPDM rubber runs continuously around the bed perimeter and between each panel joint, creating overlapping barriers that divert water away from seams. The rear seal compresses against the tailgate when latched, forming a gasket that holds firm even at highway speeds or during pressure washing.
Drain channels molded into the underside of each panel route any moisture that does collect toward the bed corners, away from cargo. We’ve tested the assembly in sustained rain and high-pressure rinse cycles; while no folding cover is submarine-tight, the Gator folding tonneau cover keeps the bed dry enough for electronics, upholstered seats, or paper documents stored in totes.
Shop companion hard folding truck bed covers
Rated 4.8 by verified buyers
Common questions about the Gator folding tonneau cover
The cover is designed to fit most standard 5.5-foot, 6.5-foot, and 8-foot beds with factory-style stake pocket rails. The adjustable clamp blocks accommodate rail widths between 1.5 and 2.2 inches, which covers the majority of Ford, Chevrolet, GMC, Ram, Toyota, and Nissan pickups made from 2005 onward.
If your truck has aftermarket bed liners with raised rails or custom rail systems, measure the rail width before ordering. We also offer a clamp reinforcement pack for non-standard configurations.
Yes. The tri-fold design allows you to lift and stack the panels forward toward the cab without lowering the tailgate. This is especially useful when you need quick access to items near the front of the bed or when you're parked in tight spaces where opening the tailgate isn't practical.
For full bed access, you can fold all three panels completely forward and rest them against the cab window, leaving the entire bed open from tailgate to bulkhead.
The cover is rated to support up to 400 pounds of evenly distributed weight across all three panels. This means you can walk on it carefully during installation or maintenance, or stack lightweight gear like sleeping bags, camping chairs, or spare tires on top.
We don't recommend using the cover as a load-bearing platform for heavier items like toolboxes, ATVs, or concentrated point loads, as this can stress the hinges and void the warranty.
No drilling is required. The cover uses a clamp-on mounting system that grips your existing bed rails with adjustable brackets. You tighten the clamps with a standard hex key, and the rubber-lined clamp pads protect your rail finish from scratches.
This no-drill installation means you can remove the cover completely if you sell the truck or switch to a different bed accessory, and your bed rails remain untouched.
The cover is designed to be highly water-resistant rather than fully waterproof. EPDM rubber seals run along all edges and panel joints, and overlapping seal geometry diverts most rainwater away from the bed. Molded drain channels underneath route any residual moisture toward the bed corners.
In real-world conditions — highway rain, car washes, snowmelt — the bed stays dry enough for electronics, upholstered items, or paper stored in totes. For absolute submersion-level protection, we recommend additional bed mats or waterproof cargo bags for high-value items.
Yes. The cover works with both drop-in and spray-in bed liners, as long as the liner doesn't significantly raise or alter the bed rail profile. Most factory-style liners leave the rail stake pockets accessible, which is where the cover clamps attach.
If your liner has built-up edges or caps that cover the stake pockets, you may need to trim the liner slightly or use spacer blocks to bring the clamps up to the correct height. Contact us with photos of your specific liner setup if you're unsure about compatibility.
You'll need a 5mm hex key (Allen wrench) to tighten the clamp bolts, and a tape measure to verify bed dimensions before placing the cover. A helper is useful for lifting the assembled cover onto the bed rails, though one person can manage it solo if needed.
No power tools, drill bits, or permanent fasteners are required. Most customers complete installation in 15 to 20 minutes following the included step-by-step guide.
