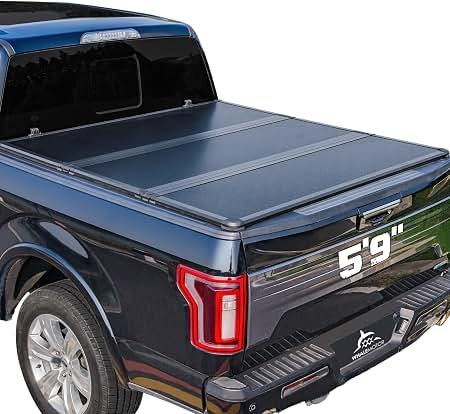

Gator FX Tonneau Cover – Premium Hard Folding Bed Protection
The Gator FX tonneau cover is our flagship tri-fold hard cover engineered for truck owners who demand security without sacrificing bed access. We built it around reinforced aluminum panels wrapped in UV-resistant matte vinyl, so you get the strength of metal with a clean low-profile look.
Our clamp-on rail system installs in under 20 minutes with zero drilling—just hand-tighten the side clamps and you’re ready to roll. The three-panel design folds completely open for full-bed access or locks flat for maximum cargo protection. We designed the FX to sit flush with your bed rails, preserving aerodynamics and fuel economy on highway drives.
Weather seals run the full perimeter of each panel, keeping rain and dust out even during heavy downpours. The integrated tailgate seal compresses automatically when you close the gate, forming a watertight barrier from cab to tailgate. For added security, each panel features dual locking latches that engage your truck’s existing tailgate lock.
Core specs & construction
Panel Construction & Load Capacity
Each panel on the Gator FX measures 5/8 inch thick and houses an aluminum honeycomb core sandwiched between top and bottom sheets. We laser-cut reinforcement ribs into the frame to prevent flex under load, and the corner brackets bolt through the frame with grade-8 fasteners.
The cover supports a distributed static load of 500 pounds when closed and latched. That’s enough to handle a light snow accumulation or stacked gear, but we don’t recommend walking on it—your boots can dent the vinyl skin. When folded open against the cab, the rear two panels lock into place with gas struts, so they won’t slam down while you’re loading the bed.
Installation & Fitment Details
Clamp-On Rail System
Our side rails mount to your truck’s bed rails using C-clamps spaced every 12 inches. Each clamp has a rubberized foot to protect your truck’s paint, and the tension bolts are hand-tightened—no power tools required. The entire install takes 15 to 20 minutes with a buddy to help align the rails.
Once the rails are on, the panel assembly drops into place and secures with four quick-release pins. You can remove the entire cover in under two minutes if you need to haul something tall, and reinstallation is just as fast.
Weather Sealing & Drainage
We run a continuous EPDM rubber gasket along the perimeter of each panel where it meets the side rails and adjoining panels. The gasket compresses under the weight of the panels to form a seal, and we added drain channels along the front edge of each panel to route any water that does seep in toward the tailgate.
The tailgate seal is a bulb-style gasket that mounts to the underside of the rear panel. When you close your tailgate, it squeezes the bulb and creates a weathertight barrier. Even in a car wash or heavy rainstorm, the bed stays dry enough that paper grocery bags won’t get soggy.
Explore Our Complete Hard Folding Lineup
Rated 4.8 by verified buyers
Common Questions About the Gator FX
No drilling required. The Gator FX uses a clamp-on rail system that secures to your truck’s existing bed rails with hand-tightened C-clamps. You can install or remove the entire cover without making any permanent modifications to your truck.
Each clamp has a rubberized contact pad to protect your paint, and the tension bolts are designed for hand tools only—no power drill needed. Most customers complete installation in 15 to 20 minutes.
Yes. The tri-fold design lets you fold all three panels forward against the cab, giving you 100 percent bed access from the tailgate. The rear two panels lock in the open position with integrated gas struts, so they won’t fall while you’re loading cargo.
If you need to haul something taller than the folded panels allow, you can remove the entire cover assembly in under two minutes using the four quick-release pins.
The cover is rated for a 500-pound distributed static load when all panels are closed and latched. That’s enough to handle snow accumulation or stacked gear, but we don’t recommend standing or walking on it—boot pressure can dent the vinyl skin.
The aluminum honeycomb core and reinforced corner brackets provide the structural strength, but the vinyl outer layer is designed for weather resistance, not impact resistance.
Yes, the clamp system is compatible with most spray-in bed liners like Line-X and Rhino Linings. The clamps adjust to grip the top edge of your bed rail, and the rubberized feet conform to the textured liner surface.
If you have a thick drop-in bed liner, the clamps can extend outward an extra half-inch to clear the liner walls. For best fitment, verify your bed length (5.5-foot, 6.5-foot, or 8-foot) when ordering.
The cover features EPDM rubber seals on all four sides of each panel and a bulb-style tailgate seal that compresses when you close your gate. In normal rain and even car washes, your bed will stay dry enough that paper goods won’t get wet.
If you park nose-down on a steep slope during a heavy downpour, a small amount of water can pool at the cab end—that’s a geometry issue common to all tri-fold covers. Drain channels along the panel edges route most water toward the tailgate, and any trapped moisture evaporates quickly once you crack the cover open.
Each panel has dual rotary latches that lock into the side rails, and the rear panel’s latches integrate with your truck’s tailgate lock. Once your tailgate is locked, the rear panel cannot be opened from outside.
The front two panels can only be released from inside the bed, so a thief would need to defeat your tailgate lock first. For additional security on job sites, we offer an optional cable lock kit that threads through the panel hinges and anchors to your bed’s tie-down points.
We back the Gator FX with a five-year warranty on the aluminum frame, hinges, and hardware against manufacturing defects. The vinyl skin carries a three-year UV fade warranty—if the matte black finish cracks or discolors under normal sun exposure, we’ll replace the affected panels.
Warranty claims require proof of purchase and photos of the defect. Damage from accidents, modifications, or improper installation is not covered.
