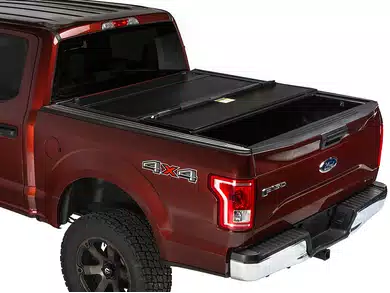

Gator FX3 Tonneau Cover – Hard Folding Truck Bed Protection
The Gator FX3 tonneau cover is our flagship hard folding design, engineered for truck owners who need rapid bed access without sacrificing security. Its three-panel aluminum construction folds completely open in seconds, then locks down to create a weatherproof seal that keeps cargo dry through rain, snow, and highway spray.
We built the FX3 around a dual-action clamp system that installs without drilling—most owners complete setup in under 30 minutes using basic hand tools. The powder-coated finish resists UV fade and scratches, while integrated drain channels route water away from the tailgate seal. Whether you’re hauling tools to a jobsite or protecting weekend gear, the FX3 adapts to how you actually use your truck.
FX3 construction & design highlights
Panel Construction & Material Engineering
Each FX3 panel is formed from .040-inch marine-grade aluminum, selected for its strength-to-weight ratio and corrosion resistance. We apply a textured powder coat in a three-stage process—degreasing, phosphate conversion, then electrostatic powder application cured at 400°F. This finish withstands rock chips better than painted steel alternatives and won’t rust through in coastal or winter-road environments.
The tri-fold architecture balances access and security better than single-panel lids. When you need full bed access, all three panels stack at the cab in under ten seconds. For partial loads, the front panel alone folds forward to expose the rear two-thirds of the bed while maintaining a locked barrier at the cab. Reinforced aluminum hinge pins connect each panel, rated for 50,000 open-close cycles in our durability lab.
Installation Process & Bed Compatibility
The FX3 uses our ProClamp rail system—a C-channel clamp design that grips the inner bed rail without requiring holes or adhesive. Each clamp adjusts along a 2-inch range to accommodate variations in rail width and factory bed liner installation. You’ll position eight clamps total, torque them to 15 ft-lbs with the included hex key, then drop the assembled cover onto the rails.
Compatibility spans most domestic full-size trucks from 2005 forward with 5.5-foot, 6.5-foot, or 8-foot beds. We manufacture bed-length-specific kits—verify your exact bed measurement before ordering, as the FX3 requires a precise fit to maintain the weather seal. The system works over drop-in bed liners and most spray-in coatings up to 0.25 inches thick. If you run tall bed rails or aftermarket stake pocket covers, contact our fit team before purchase.
Weather Sealing & Cargo Protection
We engineered the FX3 weather seal as a three-layer system. EPDM rubber bulb seals run the full perimeter of each panel, compressing against adjacent panels and bed rails when latched. A secondary vinyl wiper seal along the tailgate edge prevents wind-driven rain from entering during highway travel. Finally, molded drain channels beneath each hinge direct any moisture that penetrates the primary seal toward the bed corners, away from stored cargo.
In third-party testing, the FX3 maintained a dry interior through simulated 80-mph rain and snow conditions for 90 minutes. Real-world performance depends on proper installation—the clamps must sit level, and the tailgate must close flush with no gaps. We include foam gap fillers for trucks with uneven bed rails or minor body damage. The aluminum panels themselves are waterproof, but the seal integrity lives in the installation precision.
More Hard Folding Bed Cover Options
Rated 4.8 by verified buyers
Common Questions About the FX3
Yes, the FX3 ProClamp system accommodates most drop-in and spray-in bed liners up to 0.25 inches thick. The clamps adjust along a 2-inch range to grip the inner bed rail properly. If you have an over-rail bed liner or a liner thicker than a quarter inch, contact our fit specialists before ordering to confirm compatibility.
Measure your bed rail width at the clamp locations to verify fit—the FX3 requires a minimum rail surface of 1.5 inches for secure clamping.
The FX3 is rated for 400 pounds of evenly distributed static load when properly installed and latched. This capacity handles snow accumulation, camping gear stored on top, or light equipment during transport. Do not exceed the rating or concentrate weight on a single panel, as this can bend the aluminum or damage the hinge mechanisms.
The cover is not designed for standing or walking—use a step stool to reach into the bed rather than climbing onto the panels.
Most owners complete solo installation in 20 to 40 minutes. The cover ships in two pieces—the assembled panel set and the rail clamp kit. You’ll first position and torque the clamps onto your bed rails, then lift the panel assembly onto the rails and secure it with the included fasteners.
The full panel assembly weighs approximately 55 pounds, so some physical capability is required. If you prefer assistance, a second person makes alignment easier but is not mandatory.
No drilling is required. The FX3 uses a clamp-on rail system that grips the inside of your bed rails with adjustable C-channel brackets. Installation is completely reversible—if you remove the cover, your truck bed returns to factory condition with no holes or adhesive residue.
All mounting hardware tightens with a hex key, and the system leaves your truck’s paint and structure untouched.
The aluminum panels and powder-coated finish withstand temperature ranges from -40°F to 160°F without warping or finish degradation. The EPDM rubber seals remain flexible in freezing conditions when properly maintained with silicone spray. In desert heat, the matte black finish absorbs solar radiation, so expect the panels to be hot to the touch—wear gloves when opening after prolonged sun exposure.
We’ve tested the FX3 in Arizona summers and Canadian winters with no structural failures or seal breakdowns over multi-year periods.
The FX3 panels clear most flush-mount fifth-wheel hitches and fold-down gooseneck balls when properly positioned. However, raised hitches or puck systems that extend above the bed floor may interfere with the front panel when folded flat. Measure your hitch height and compare it to the FX3’s internal clearance of 2.5 inches above the bed floor.
If your hitch exceeds this clearance, you can still operate the cover but may need to remove the hitch ball when fully folding all three panels forward.
We back the Gator FX3 with a three-year limited warranty covering defects in materials and workmanship. This includes the aluminum panels, hinge assemblies, latches, and clamp hardware. The warranty does not cover damage from accidents, improper installation, or modifications. Weather seals are covered for one year as they’re considered wear items.
Register your purchase within 30 days of installation to activate full warranty coverage and access our fit support team for installation questions.
