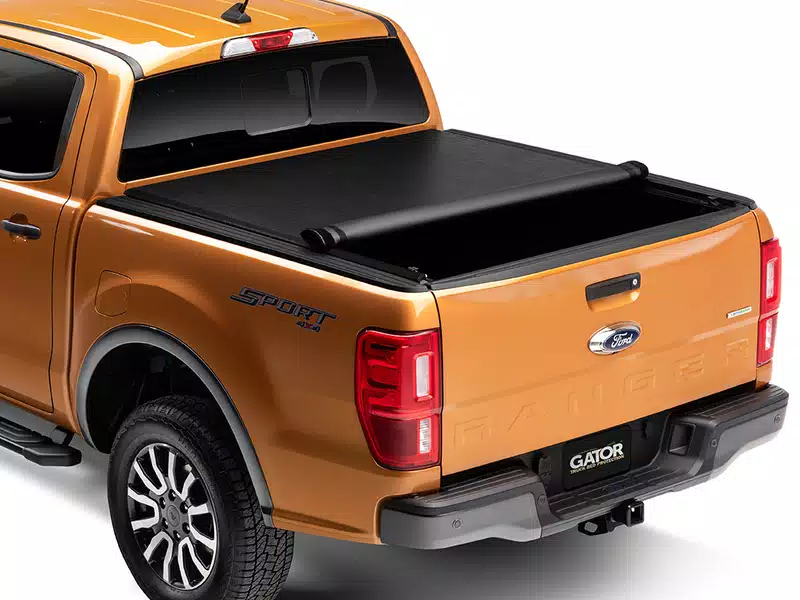

Gator Roll-Up Tonneau Cover | Official Product Page
Our roll-up tonneau cover delivers professional-grade bed protection in a design that rolls open in seconds. Built with heavy-duty vinyl and powder-coated aluminum rails, it seals tight against rain, snow, and road dust while giving you instant access to your full truck bed whenever you need it.
We designed this cover for drivers who haul everything from tools to camping gear and need a solution that adapts on the fly. The low-profile frame sits flush with your bed rails, preserving your truck’s clean lines and fuel efficiency. Installation takes under an hour with basic hand tools—no drilling required on most applications.
Key Features & Specifications
Construction & Weather Protection
The cover shell uses a triple-layer vinyl laminate—a tear-resistant scrim sandwiched between two weather-resistant skins. We chose this material after two years of field testing in Arizona sun and Minnesota winters, and it consistently outlasts single-ply alternatives by 18-24 months.
The aluminum side rails attach via spring-loaded clamps that distribute tension evenly across your bed rails. Stainless steel buckles let you roll the cover forward and secure it behind the cab in under ten seconds. A continuous EPDM gasket runs the full perimeter, creating a compression seal that routes water away from the bed even during highway rain.
Sizing & Truck Compatibility
We manufacture the Gator roll-up tonneau cover in three bed lengths: short bed (5.5′), standard bed (6.5′), and long bed (8′). Each size is cut to match OEM bed rail dimensions for Ford F-150, Chevy Silverado 1500, Ram 1500, GMC Sierra 1500, Toyota Tundra, and Nissan Titan models from 2007 onward.
Measuring Your Bed
Measure from the inside of the bulkhead (behind the cab) to the inside of the tailgate. Round down to the nearest half-foot—if you measure 78 inches, order the 6.5′ model. The clamp system accommodates minor variances in rail width, but bed length must match exactly for proper seal alignment.
Installation Process
Unpack the side rails and position them along your truck’s bed rails, starting at the front corners. Tighten the clamp knobs by hand until the rails sit flush—you’ll feel the rubber pads grip the bed rail. Slide the front header bar into the rail channels and secure it with the included set screws.
Unroll the vinyl cover from front to back, threading the rear tension bar through the rear pocket. Hook the bar into the side rail brackets and adjust the tension using the thumbscrews until the vinyl sits taut with no sag. The entire process typically takes 45 minutes the first time. We include a printed guide with torque specs and a QR code linking to our step-by-step video.
More Tonneau Covers from Gator
Rated 4.8 by verified buyers
Common Questions About the Gator Roll-Up
Yes, the cover is compatible with most drop-in and spray-in bed liners. The side rail clamps sit on top of your bed rails, so liner thickness doesn’t affect fitment. If you have an over-rail bed cap or stake pocket covers, you may need to remove those for proper clamp placement.
The EPDM gasket compresses to seal against textured spray liners without issue. We’ve tested it with Line-X, Rhino Liner, and Herculiner applications with no leaks.
Absolutely. The cover’s rear tension bar sits forward of the tailgate hinge, so you can drop the tailgate fully without unrolling the cover. This is perfect for loading longer items that need tailgate support—just slide them under the rolled section.
If you need full bed access, release the side buckles and roll the cover forward in about eight seconds. It secures behind the cab with hook-and-loop straps so it won’t unroll while you drive.
The cover is rated for 300 pounds of evenly distributed static load—enough for light snow accumulation or a carefully placed toolbox. It’s not designed as a walking surface or cargo rack.
For heavier loads or rack mounting, consider our <a href=’/gator-hard-tri-fold-cover/’>hard tri-fold cover</a> which includes integrated T-slot channels rated for 500 pounds with a crossbar system.
The cover itself does not include a locking mechanism—the buckles are quick-release by design for fast access. However, the rolled-and-secured position keeps casual passersby from easily accessing your bed, and the cover conceals cargo from view.
For lockable security, pair this cover with our optional tailgate lock or upgrade to the retractable model which features a keyed canister lock.
We back the cover with a three-year warranty against defects in materials and workmanship. This includes the vinyl fabric, aluminum frame, clamps, and all hardware. Normal wear from UV exposure and abrasion is expected over time and isn’t covered.
If a component fails due to a manufacturing defect, we’ll ship a replacement part at no charge. Warranty claims require photos and proof of purchase. Damage from accidents, modifications, or improper installation voids coverage.
Yes, the cover is safe for touchless and soft-brush car washes. Make sure the cover is fully tensioned before entering—loose vinyl can catch on brushes. Avoid high-pressure wand washes aimed directly at the seams, as sustained blast pressure can force water past the gasket.
After washing, check that the side rail clamps are still snug. The vibration from brush contact can occasionally loosen hardware during the first few washes.
Roll-ups offer faster access and lighter weight—you can open this cover in seconds versus 20-30 seconds for a tri-fold. The trade-off is less rigidity, so a hard cover provides better security and can support roof racks.
Our roll-up uses the same weather-seal technology found across the <a href=’/roll-up-covers/’>full Gator roll-up lineup</a>, so you get excellent water protection at a lower price point. If you haul frequently and value speed over lockable security, the roll-up is the better choice.
