GatorTrax Manual Retractable Tonneau Cover
The GatorTrax Manual Retractable tonneau cover combines low-profile styling with one-hand operation, giving you instant bed access without removing or folding panels. Our canister-style design slides open or closed along precision-machined aluminum rails, locking at any position along the bed.
We built the GatorTrax with a sealed vinyl canopy that sheds rain and snow while sitting flush with your truck’s bed rails. The manual rack-and-pinion mechanism requires no drilling for most full-size pickups, and the latch handle sits within easy reach at the tailgate. Whether you’re hauling landscaping gear Monday or camping equipment Friday, you control exactly how much bed space stays covered.
Core specs & build details
Canister & Rail Construction
The GatorTrax uses a welded aluminum canister housing that rolls the vinyl fabric onto a spring-loaded spool. When you pull the fabric forward, the spool’s tension keeps the cover taut across the bed without sagging in the center. The canister mounts behind the cab, tucked low enough that most tonneau-compatible racks and crossbars clear it.
Our dual-wall aluminum side rails bolt into factory bed stake pockets on both driver and passenger sides, creating the track for the canister to slide along. Each rail features a sealed polymer bearing channel that resists dirt and moisture, so the cover glides smoothly even after months of exposure to mud or road salt. The rails sit 1.2 inches above the bed rail, preserving a low profile while maintaining enough clearance for most bed liner edges.
Installation & Truck Fit
GatorTrax Manual Retractable covers install without permanent modifications to your truck bed. You’ll position the side rails over the stake pockets, drop in the mounting clamps, and tighten eight hand-turn knobs—no power tools required. The canister assembly slides into brackets on the rear bulkhead, and you’ll connect the fabric to the front rail’s locking bar.
We include application-specific clamp sets for Ford F-Series, Chevy Silverado, GMC Sierra, Ram 1500/2500, Toyota Tundra, and Nissan Titan trucks from 2015 forward. If your bed has a spray-in liner with raised edges, the adjustable clamps accommodate up to 0.75 inches of extra height. The entire installation takes most owners 45–60 minutes working alone, and you can remove the cover in about fifteen minutes if you need full bed access for taller cargo.
Operating the Retractable Mechanism
Opening the Cover
Unlock the tailgate handle and release the tension latch at the canister. Grip the pull strap sewn into the front edge of the vinyl and walk it toward the cab. The spool inside the canister unwinds as you pull, and the side rails guide the fabric straight across the bed. You can stop at any point—half open for a sheet of plywood, three-quarters open for a cooler, or fully retracted to expose the entire bed.
Locking & Security
The GatorTrax lock cylinder sits in the canister endcap, accessible from the tailgate. Turn the key to engage steel pins that lock the spool and prevent unwinding. When locked in the closed position, the cover resists prying from the sides, and the tensioned fabric won’t flap or shift during highway driving. A red indicator tab shows whether the lock is engaged, so you’ll know at a glance if the bed is secured.

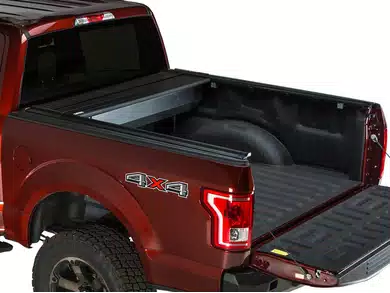

More Manual Retractable Covers from Gator
Rated 4.8 by verified buyers
GatorTrax Manual Retractable Cover Questions
No, the manual version requires you to access the tailgate to unlock and pull the cover open. The tension latch and pull strap are located at the rear of the bed. If you need cab-accessible operation, our GatorTrax Power Retractable model includes a dash-mounted switch and key fob for remote opening and closing.
Yes, as long as the accessory doesn’t interfere with the canister area directly behind the cab. Most tailgate steps and flip-down extenders mount low enough to clear the side rails. If you use a hitch-mounted bed extender, you’ll need to fully retract the cover to access the tailgate, but the cover itself won’t block the hitch receiver.
The GatorTrax canopy is designed for weather protection, not load-bearing. We recommend keeping snow accumulation below six inches and avoiding placing heavy items directly on the closed cover. The vinyl can handle incidental contact from cargo sliding forward during braking, but it’s not rated to support standing weight or stacked loads.
Most slim-profile bed rail caps are compatible because the GatorTrax clamps onto the bed’s stake pockets rather than clamping over the rail itself. If your rail caps are thicker than one inch or cover the stake pocket openings, you may need to remove them for installation. Contact us with your truck year and rail cap model for a fit confirmation before ordering.
Yes, the cover locks at any position along the bed, so you can secure it halfway or three-quarters open if you’re hauling tall cargo. The lock cylinder prevents the fabric from unwinding further, and the tensioned spool keeps it from flapping. We recommend staying below 65 mph when the cover is partially retracted to minimize wind stress on the fabric.
The GatorTrax uses a flexible vinyl canopy on a roll-up spool, while the GatorLock features rigid aluminum slats that retract into a canister. The GatorLock offers higher puncture resistance and can support light roof-rack loads, but it’s heavier and costs more. The GatorTrax Manual is lighter, quieter, and easier to operate by hand for everyday truck bed coverage.
Inside the canister endcap, you’ll find a hex adjustment bolt that controls spool tension. Use the included tension wrench to turn the bolt clockwise in quarter-turn increments until the fabric sits taut when fully extended. Check the tension with the cover halfway open—it should hold its position without creeping back toward the canister. Full re-tensioning instructions are in the installation manual.
